Adhesive Transparent LED Displays for Digital Innovation

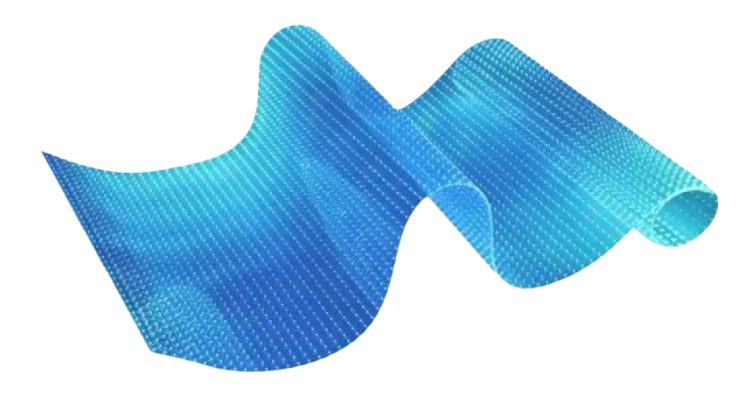

Saipur offers adhesive transparent LED displays that permit viewers to observe through the screen while still viewing vibrant content, serving a wide variety of applications. The P6 film screen is applied directly onto glass, turning any window, storefront or facade into a high-impact digital canvas without blocking natural light.
With an ultra-slim 3mm build and an adaptable film construction that bends to curved glass structures, the display adds almost no load to the existing structure and needs no heavy steel framework.
Features
- Adaptable film screen suitable for curved glass structures
- Ultra-slim construction measuring 3mm thickness
- High permeability rated at ≥85%
- Straightforward installation directly onto glass surfaces
- Expansive 140° viewing angles across all directions
≥85%
Transparency
3 mm
Panel Thickness
6 mm
Pixel Pitch
140°
Viewing Angle
| Parameter | Adhesive Transparent LED P6 |
|---|---|
| Model | P6 |
| Pixel Pitch | 6mm × 6mm |
| LED Type | SMD2121 |
| Module Dimensions | 1000mm × 240mm |
| Brightness | ≥1000cd/m² |
| Power Consumption | 400W/m² (peak); ~200W/m² (average) |
| Refresh Rate | ≥3840s |
| Color Depth | 16Bit |
| Viewing Angle | 140° horizontal and vertical |
| Transparency | ≥85% |
| Panel Thickness | 3mm |
| Operating Temperature | -20~50°C |
| Lifespan | 100,000 hours theoretical |
| IP Rating | IP30 |

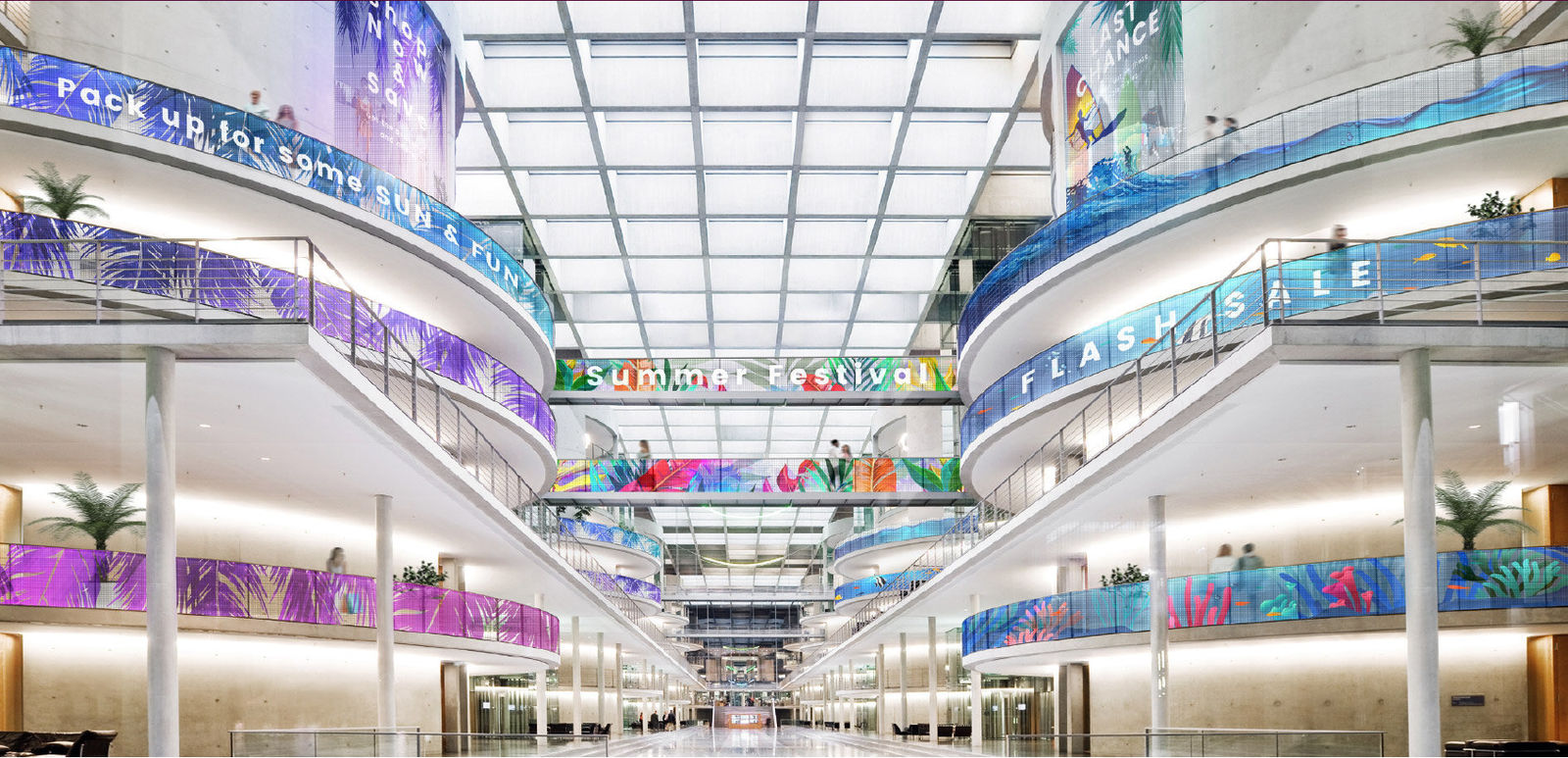

Applications
- Retail Storefronts
- Showrooms
- Shopping Malls
- Glass Facades
- Commercial Buildings
- Exhibitions & Events
- Airports & Metro Stations
Saipur provides reliable Adhesive Transparent LED solutions with customization, installation, integration, and technical support for commercial, advertising, and architectural applications.
